ES-DC Series

ES-DC Series(图1)ES-DC Series(图2)

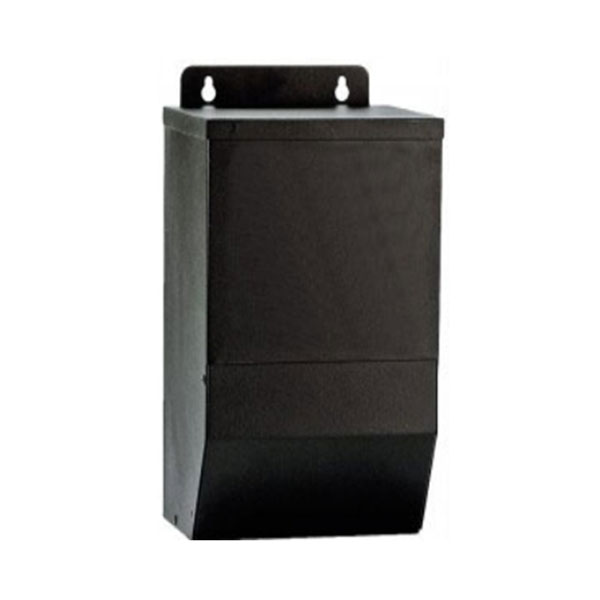

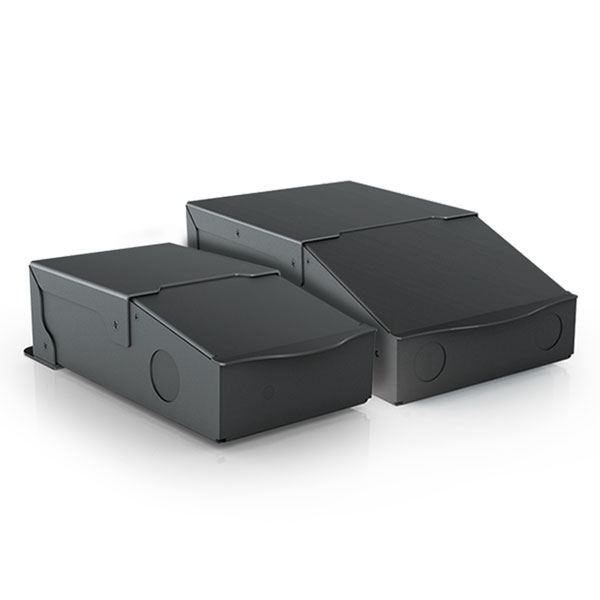

ES-DC-Series is the most compact magnetic core dimmable LED driver on the market making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other residential and commercial lighting applications. Encased in a high-quality metal enclosure that includes multiple ⅞” knock-outs for easy installation, each unit is equipped with circuit breakers to protect both the driver and the LED load. All our magnetic LED drivers are phase dimmable with any standard leading-edge MLV TRIAC dimmer and come in both Class 2 and higher power single-channel options.

Installation: Integrated Junction Box with Multiple ⅞“ Knock-Outs


    Driver Types: Class 2 and Higher Power Single Channel Options

    Dimming: Phase Dimmable with Leading (Forward) Edge MLV TRIAC Dimmer Only

    Input Voltage: 120VAC, 50/60Hz; 277VAC Available

    Output Voltage: 12VDC or 24VDC

    Environmental: Dry and Dampx



ES-DC Series(120VAC)Spec Sheet

Part Number

Max Load

Input

Output

Dimming

Class 2

Environment

ES20W12DC

20W

120VAC

12VDC

Phase

Yes

Dry and Damp

ES40W12DC

40W

120VAC

12VDC

Phase

Yes

Dry and Damp

ES60W12DC

60W

120VAC

12VDC

Phase

Yes

Dry and Damp

ES96W12DC

96W

120VAC

12VDC

Phase

Yes

Dry and Damp

ES100W12DC

100W

120VAC

12VDC

Phase


Dry and Damp

ES150W12DC

150W

120VAC

12VDC

Phase


Dry and Damp

ES200W12DC

200W

120VAC

12VDC

Phase


Dry and Damp

ES300W12DC

300W

120VAC

12VDC

Phase


Dry and Damp

ES20W24DC

20W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES40W24DC

40W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES60W24DC

60W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES100W24DC

100W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES150W24DC

150W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES200W24DC

200W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES300W24DC

300W

120VAC

24VDC

Phase

Yes

Dry and Damp

ES600W24DC

600W

120VAC

24VDC

Phase


Dry and Damp
