Communication Transformer

Communication Transformer(图1) Communication Transformer(图2)
No. Type Mounting Turns Ratio OCL
10KHz 0.1V 		Length
(mm) 		Width
(mm) 		Height
(mm)

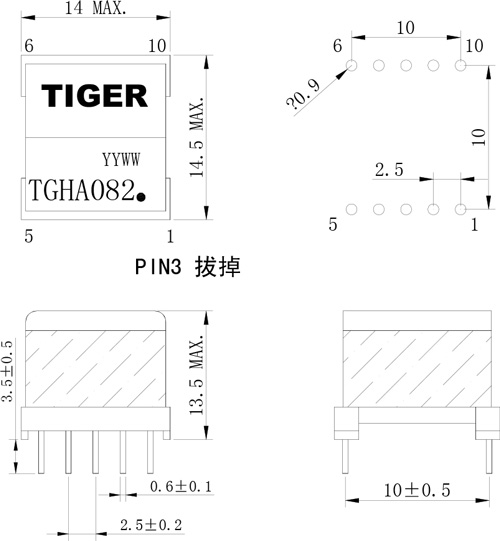

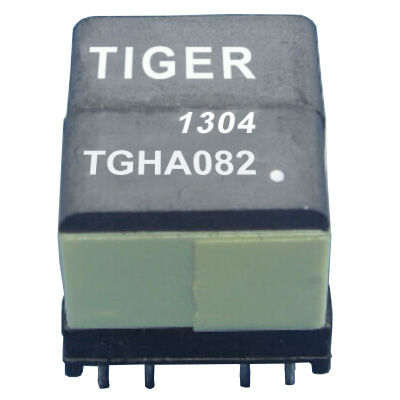

TGHA082 ADSL TH 2.2: 1±2% 410uH ±8% 14 MAX 14.5 MAX 13.5 MAX
TGHA149 ADSL TH 2:1±5% 420uH ±10% 14 MAX 14.5 MAX 13.5 MAX
TG16A20 ISDN SMD 1:1±2%
1:2±2% 		1.2mH Min 12.7±0.5 9.4±0.5 5.68±0.5
TG40A30 ISDN SMD 1:1±2%
1:1±2% 		47uH Min 28.1±0.5 16±0.5 5.7±0.5
TGSA156 VDSL SMD 1.4:1±2% 430uH ±10% 8.0 MAX 8.3 MAX 10 MAX
